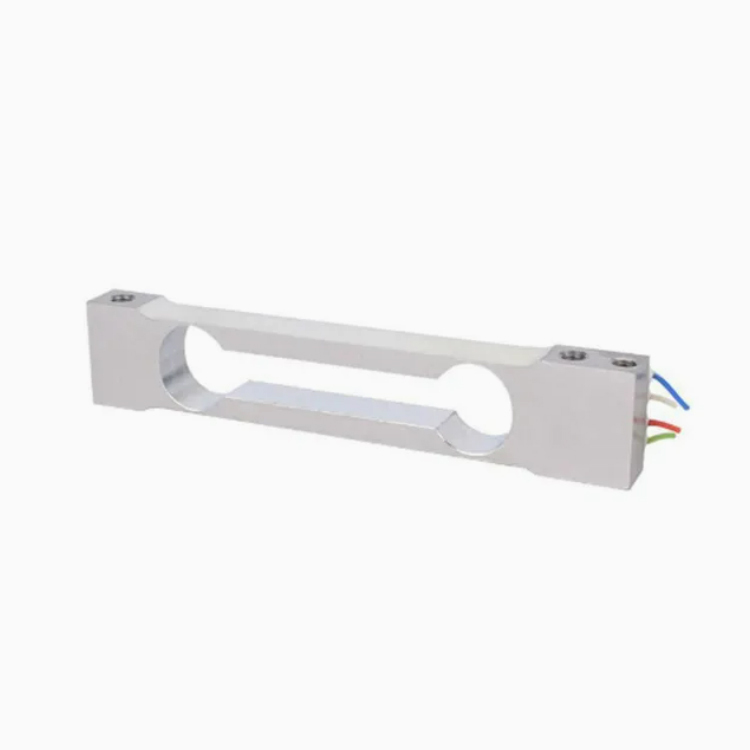

100g/200g Parallel Beam Weighing Sensor Aluminium Alloy Single Point Load Cell
The single point load cell works by converting the weight carried or the force applied to it into a signal. When a load is applied to a single point load cell, the resistance changes, resulting in a change in output voltage. Single point load cells are used alone in small to medium sized scales.
| Product name | Single Point Weight Sensor |
| Capacity | 100g,200g |
| Rated output | 0.9±0.1mV/V |
| Zero Balance | ±0.05mV/V |
| Creep(30min) | ≤0.0166%F.S. |
| Non-linearity | ≤0.015%F.S. |
| Hysteresis | ≤0.015%F.S. |
| Repeatability | ≤0.015%F.S. |
| Input impedance | 405±20Ω |
| Output impedance | 350±10Ω |
| Temp.effect on output | 0.02%F.S./10 ºC |
| Temp.effect on zero | 0.03%F.S./10 ºC |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ºC |
| Operating Temp Range | -10~50 ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | diameter 1x100mm |
| Material | Aluminium alloy |
| Max.paltform size | 50mmx50mm |
